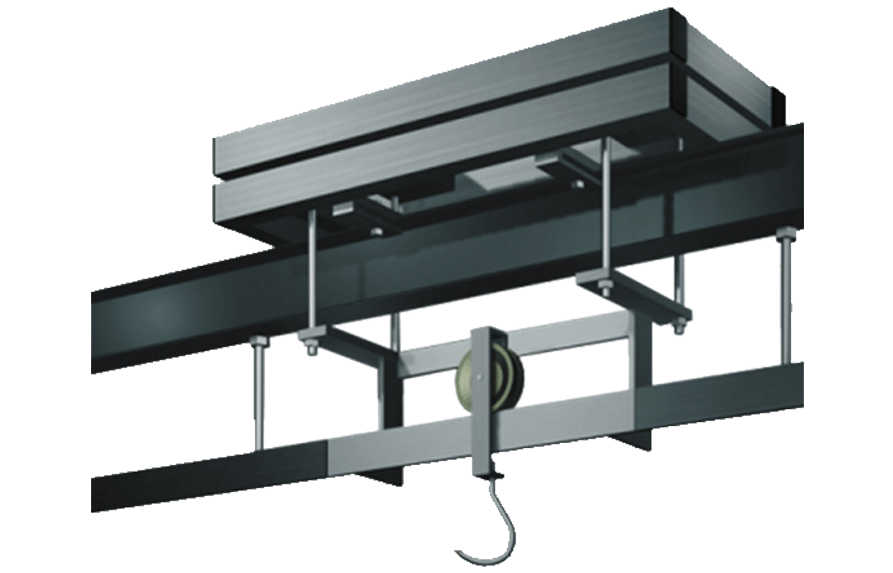

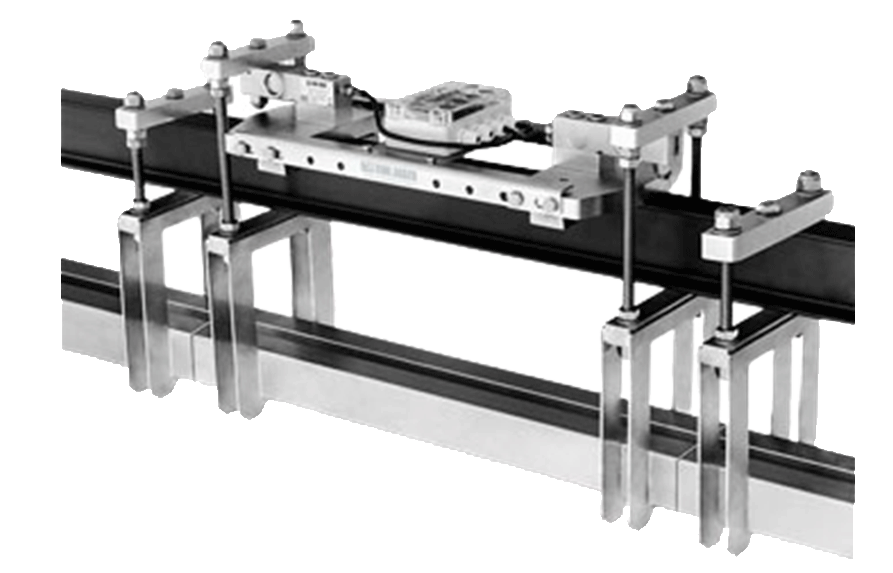

Low profile weighing modules for overhead monorails, easily adaptable with any type of monorail track systems, even already existing ones. Fitted approved load cells.

MAIN FEATURES

• Functions with 1 aluminium load cell with IP66 protection degree, approved according to OIML R60 C3 standards (3000 + 3000 divisions).
• AISI304 STAINLESS STEEL tubular structure, fitted with accessories for fastening to the beam and threaded rods for fastening to the customer’s track section.
• Electropolished structure for easy cleaning: The smooth surface prevents the formation of incrustations and the proliferation of microorganisms.
• Maximum length of the customer’s track section: 300 mm.
• Up to 15 Vdc power supply.
• Hermetic junction box and shielded 10m long 6-pin cable fitted with connectors for connection to the weight indicator.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

• Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with our indicators).
• Models with special sizes and capacities (ask for estimate).
• Possible adaptations with customer’s track section (to be supplied per account of manufacture), which will be quantified upon job card cost account.

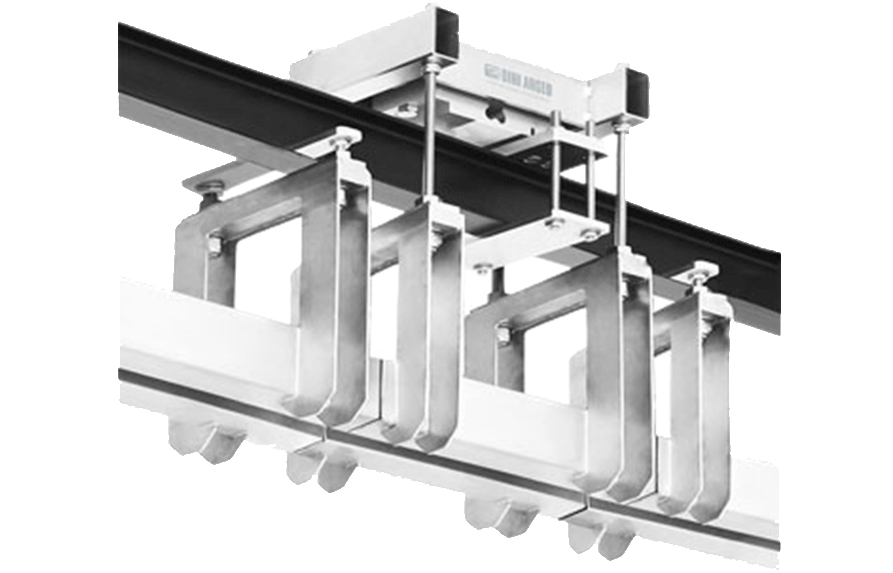

Weighing modules for overhead monorails, easily adaptable with any type of handling system, even existing ones. Fitted with OIML approved load cell.

MAIN FEATURES

• It operates with 1 aluminium load cell with IP66 protection rating, approved according to OIML R60 C3.
• AISI 304 STAINLESS STEEL structure, fitted with accessories for fastening to the beam and threaded rods for fastening to the customer’s track section.
• Electropolished structure for easy cleaning: the smooth surface helps reduce dirt accumulation and the proliferation of microorganisms.
• Maximum length of the overhead rail weighing section: 300 mm.
• Up to 15 Vdc power supply.
• 6-wire shielded cable, 3m long, 5mm diameter.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

• Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with our indicator).
• Models with special sizes and capacities (ask for estimate).
• Possible adaptations with customer’s track section (to be supplied per account of manufacture), which will be quantified upon job card cost account.
• Stainless steel load cell.

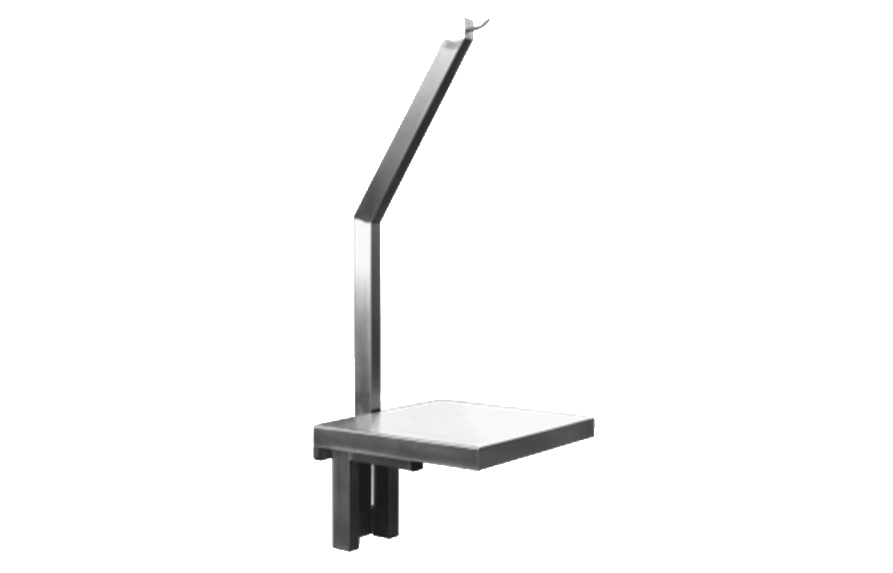

Stainless steel weighing modules suitable both for weighing hanging quarters and for weighing on a reclining platform. Standard version is with approved load cell.

MAIN FEATURES

• Functions with a stainless steel, single point, approved load cell made according to OIML R60 standards, with protection against dust and moisture according to IP66 standards (350 Ohm input resistance).
• Bearing structure which may be fixed to the wall fitted with a quarter-weighing hook.
• Folding stainless steel loading surface, fitted with a fall-prevention safety piston.
• Up to 15 Vdc power supply.
• Shielded 3m long 6-pin cable with connectors for connection to the weight indicator.

OPTIONS TO BE SPECIFIED WHEN ORDERING

• Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (depending on the indicators used).
• Models with special sizes and capacities (ask for estimate).
