DIVISION (g): 0,01. CAPACITIES (g): 2100, 4200.

Multifunctional high precision scales, suitable for laboratory and industrial use. The completely stainless steel structure makes this scale suitable for the environments with strict hygiene requirements. Available in standard version or with internal auto-recalibration system.

DIVISION (g): 0,1, 1. CAPACITY (g): 22000, 33000, 62000.

TECHNICAL FEATURES

• Backlit LCD display:
  – 8 digits 16.5mm for weight display;
  – 20 digits 8.5mm for user messages and identification of the “soft keys”;
  – bar graph proportional to the weight;
• Waterproof membrane keypad, with 9 keys.
• Waterproof construction completely in IP65 stainless steel.
• Quick weight sensor with tuning fork system, which combines speed with absolute measurement accuracy.
• Stainless steel plate, size: 400x350mm.
• Level, and adjustable feet.
• RS232/c port for connection to PC, 3590 TOUCH SCREEN series indicator or printer.
• Cable 1m long, for connection between platform and indicator.
• Power supply: standard fitted with 230 Vac, 12Vdc power supply unit with EU, UK, US, AU plug.
• Operating temperature +5°C…+35°C, non-condensing relative humidity 80%.
• Packing 480x570x930 mm size.
• Automatic internal self-calibration system at power-on (for GAEPKxxRN models);
• Upon request:
  – ACCREDIA calibration with issuing of relative certificate.

AVAILABLE FUNCTIONS

• Multi-user management with password protection with programmable settings, different for each user:
  1 Admin – 2 User – 1 Guest;
• Date and time can only be changed by authorized personnel;
• Zeroing;
• Semi-automatic tare;
• Up to five recordable tares;
• Operational messages for zero and tare execution (see user manual for additional information);
• Scale Identification number with a 10 digits ID;
• Customisable virtual keys for quick recall of functions;
• 6 configurable communication serial protocols, with string sending either when the weight is stable, on demand, by pressing a key or continuously;
• Zero tracking;
• Auto power off.

USER MANUAL

• User Manual available in English, French and German.

WEIGHING MODES

• Piece-counting with automatic updating of the reference on the pieces count;
• Percentage for formulation and recipe dosing;
• Customised coefficient for weight conversion;
• Weight formulation and recalling;
• Totalization in loading on the net or total weight;
• Conversion of approved units of measure: g (grams), kg (kilograms), ct (carats);
  For internal use: oz (ounces), lb (pounds), ozt (troy ounces), gn (grains), dwt (pennyweight), mom (momme), tlh (Hong Kong Tael), tls (Singapore and Malay tael), tlt (Taiwan tael), tola (tola);
• Tolerance control with screen message concerning weight, pieces or customised units of measure and relative thresholds (LOW-OK-HIGH).

Multifunctional high precision scales, suitable for laboratory, industrial use, jewelry and pawn shops and cash for gold shops. Available also CE-M APPROVED for legal for trade use.

DIVISION (g): 0.001 and 0.01.
CAPACITY (g): 420, 620, 2200, 4200, 6200.

TECHNICAL FEATURES

• Backlit LCD display with 7 digits 16.5mm high.
• Waterproof membrane keypad, with 5 keys.
• Construction: bearing structure in die cast aluminium, ABS case.
• Weight detection through tuning fork system.
• Stainless steel plate, size:
  – GAI420N and GAI620N models Ø 118mm
  – GAI2200N, GAI4200N, GAI6200N models 180x160mm.
• Winscreen (on GAI420N and GAI620N models), level, adjustable feet.
• Power supply: standard fitte with 230 Vac power adapter.
• Operating temperature +5°C…+35°C, non-condensing relative humidity 80%.
• RS232/c port for connection to PC, 3590EGT series indicator or printer.
• Internal calibration (except GAI6200N).
• Upon request:
  – ACCREDIA calibration with issuing of relative certificate;
  – CE-M approval;
  – weigh-below hook.

FUNCTIONS

• counting;
• % weight;
• conversion units of measure:
  – Standard versions, not approved: g, kg, ct, oz, lb, ozt, dwt;
  – CM versions, approved: g, kg, ct (only available at time of scale’s order);
• zeroing;
• zero tracking;
• semi-automatic tare;
• digital calibration.

Efficient and compact multifunctional high precision balances, with multi user management, suitable for pharmaceutical, veterinary, and industrial use. Light and easily transportable, useful for those who have to frequently change their workstation. CE-M APPROVED legal for trade version.

DIVISION (g): 0.001, 0.01 and 0.1.
CAPACITY (g): 620, 6200, 15000.

TECHNICAL FEATURES

• Backlit LCD display with 8 digits 16.5mm high;
• Waterproof membrane keypad, with 9 keys;
• Construction: main structure in die cast aluminium, ABS case;
• Quick weight sensor with tuning fork system;
• 1.6 second weight stabilisation;
• Stainless steel plate, size:
  – GAL620 models Ø 118mm;
  – GAL6200 and GAL15000 models 180x160mm;
• Protection window (GAL620), level bubble and adjustable levelling feet;
• Power supply: 230 Vac feeder included, 4 AA batteries (not included) and USB (disabled self-calibration);
• Operating temperature +10°C…+30°C, non-condensing relative humidity 85%;
• RS232 port for connection to PC, 3590 series touch screen indicator or printer;
• USB port for connection to a pc that can be used as a virtual serial port RS232;
• Automatic calibration with built-in weights after switching the device on or by pressing the keys;
• Upon request:
  – calibration service and certificate;
  –CE-M approval;
  -weighing underhook to calculate the density;

AVAILABLE FUNCTIONS

• Zeroing;
• Zero tracking;
• 6 selectable weighing filters;
• Semi-automatic tare;
• Conversion of approved units of measure: g (grams), ct (carats);
  For internal use: oz (ounces), lb (pounds), ozt (troy ounces), gn (grains), dwt (pennyweight), mom (momme), msg (mesghal), tlh (Hong Kong Tael), tls (Singapore and Malay tael), tlt (Taiwan tael), tola (tola), bat (bath), mg (milligrams);
• Tolerance control with screen message concerning weight, pieces or customised units of measure and relative (LOW-OK-HIGH) or absolute (MIN-MAX) thresholds;
• Totalization in loading and in unloading on the net or total weight;
• Up to five recordable tares;
• 3 customisable virtual keys to choose the operating mode;
• 6 customisable virtual keys for the possible functions;
• Automatic update of the reference for the counting;
• Scale Identification number with a 10 digits ID;
• Operational messages for zero and tare execution;
• Bar graph displaying according to the capacity;
• Energy saving rules on the screen backlight;
• Automatically bootable once the power supplier is connected;
• 6 configurable communication serial protocols, with string sending either when the weight is stable, on demand, by pressing a key or continuously;
• Multi-user management with password protection with programmable settings, different for each user:
  1 Admin – 2 User – 1 Guest;
• Date and time can only be changed by authorized personnel;
• Selecting the printing language (EN-DE-FR-ES).

WEIGHING MODES

• Counting;
• Percentage for formulation and recipe dosing;
• Customised coefficient to calculate grammage and liquid volume;
• Density calculation;
• Weight formulation and recalling;
• Simple statistical control;
• Animal weighing.

USER MANUAL

• User Manual available in: EN, DE

IP65 high precision scales, suitable for laboratory and industrial use. The completely stainaless steel structure makes this scale suitable for the environments with strict hygiene requirements.

DIVISION (g): from 0.01 to 1. CAPACITY (g): from 320 to 15000.

TECHNICAL FEATURES

• High contrast backlit display.
• Splashproof membrane keypad.
• Splashproof constuction, upper structure completely in stainless steel.
• Overall IP65 protection.
• Stainless steel plate, size:
  – GAM320 and GAM820 models Ø 140mm
  – GAM2200, GAM3200, GAM6200, GAM8200, GAM15000 models 190x190mm.
• Weight detection through tuning fork system.
• Level and adjustable foot assembly.
• Power supply: standard fitted with 230 Vac power adapter or optional kit for power supply through 4 AA batteries.
• Operating temperature +0°C…+40°C, non-condensing relative humidity 80%.
• RS232/c port for connection to PC, 3590E series indicator or printer.
• Upon request:
  – ACCREDIA calibration with issuing of relative certificate.

STANDARD FUNCTIONS

• totalization;
• weight checking;
• counting;
• % weight;
• suspended weighing (for gravimetric measurements);
• animals weighing;
• zeroing;
• semi-automatic tare;
• digital calibration.

  User Manual available in: IT, EN, FR

ADVANCED APPLICATION WITH 3590E TOUCH SCREEN

• This configuration allows you to use the GAM scale as a digital platform for 3590E TOUCH SCREEN indicators.
• To create a weighing station with 3590E TOUCH SCREEN, you need to order together with the scale, the indicator, the RSCBSHG cable, and the S1 advanced configuration service.

  ADVANCED FUNCTIONS via serial port connection:

• Statistical sampling of prepackaged goods
• Microdosing
• Multiscale counting
• Tolerance control
• Wizard formulation
• Receipts, labels printing, storage and data transmission

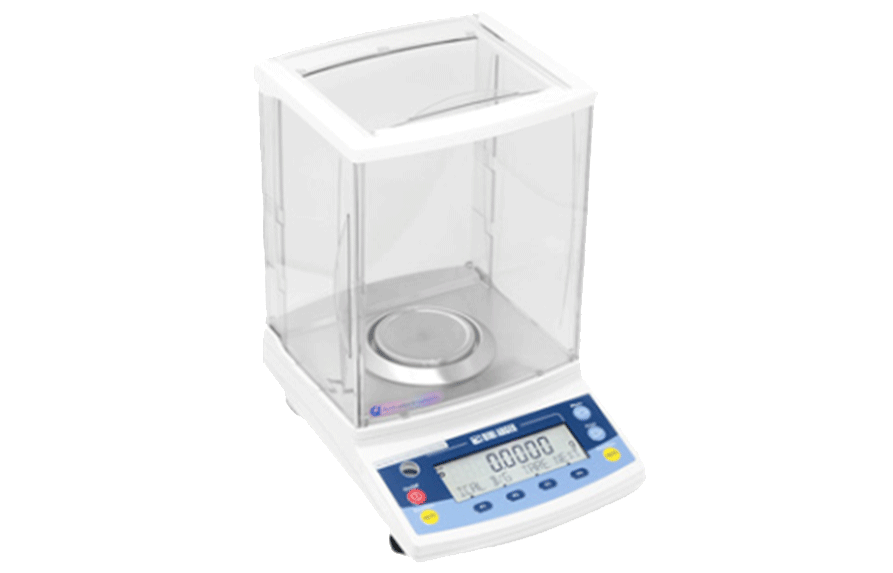

RESOLUTION (g): 0.0001. CAPACITIES (g): 220.

TECHNICAL FEATURES

• Backlit LCD display with 8 16.5mm digits.
• Waterproof membrane keypad, with 9 keys.
• Construction: main structure in die-cast aluminium, ABS housing.
• Weight sensor with tuning fork system.
• STAINLESS steel plate, size Ø 80mm.
• Windscreen, level bubble and adjustable feet.
• Power supply: fitted with 230 Vac power supply unit as standard.
• Operating temperature +10°C…+30°C, non-condensing relative humidity 80%.;
• RS232 and DIN8P port for connection to a PC, 3590 series touchscreen indicator or printer.
• USB port for connection to a PC that can be used as a virtual serial porte RS232.
• Automatic calibration with built-in weights at power-up or by pressing the keys.
• Upon request:
  – calibration service and certificate;
  – CE-M approval;
  – weighing underhook to calculate the density.

FUNCTIONS

• Zeroing;
• Zero tracking;
• 6 selectable weighing filters;
• Semi-automatic tare;
• Conversion of approved units of measure: g (grams), ct (carats);
  For internal use: oz (ounces), lb (pounds), ozt (troy ounces), gn (grains), dwt (pennyweight), mom (momme), msg (mesghal), tlh (Hong Kong Tael), tls (Singapore and Malay tael), tlt (Taiwan tael), tola (tola), bat (bath), mg (milligrams);
• Tolerance control with screen message concerning weight, pieces or customised units of measure and relative (LOW-OK-HIGH) or absolute (MIN-MAX) thresholds;
• Totalisation in loading and in unloading, on the net or total weight;
• Up to five recordable tares;
• 3 customisable virtual keys to choose the operating mode;
• 6 customisable virtual keys for the possible functions;
• Automatic update of the reference for the counting;
• Scale Identification number with a 10 digits ID;
• Operational messages for zero and tare execution;
• Bar graph displaying depending on the capacity;
• Energy saving rules on the screen backlight;
• Automatically bootable once the power supply unit is connected;
• 6 configurable communication serial protocols, with string sending either when the weight is stable, on demand, by pressing a key or continuously;
• Multi-user management with password protection and programmable settings, different for each user:
  (1 Admin – 2 User – 1 Guest);
• Date and time can only be changed by authorized personnel.

WEIGHING MODES

• Counting;
• Percentage for formulations and recipe dosing;
• Customised coefficient to calculate grammage and liquids volume (internal use);
• Density calculating;
• Weight formulation and recalling.

USER MANUAL

• User Manual available in: EN

CAPACITIES (g): 620, 6200, 15000.

MAIN FEATURES

• 27-key numeric and functional waterproof keyboard.
• 9-digit 25 mm LCD display.
• IP65 stainless steel structure.
• Dimensions 294 x 352 x 570 mm.
• Weighing sensor with tuning fork technology.
• Stainless steel plate, dimensions:
  – GEX-FZ620-1G, Ø 140 mm;
  – GEX-FZ6200-1G e GEX-FZ15000-1G, 190×190 mm;
• RS232 serial output incorporated in the power supply in safe area.
• 100 – 240VAC power supply in safe area, with RS232 serial port.
• 5 m cable between power supply and weight indicator.
• 1 m cable between platform and weight indicator.
• 2.5 m power cable.
• Operating temperature +5°C…+40°C (display and platform, 0°C…+40°C (power supply), non-condensing relative humidity 85%.
• Version approved for CE-M II legal-for-trade use.

AVAILABLE FUNCTIONS

• Zeroing;
• Semiautomatic tare;
• Preset tare;
• Tolerance check;
• Totalization in loading and unloading;
• Up to 100 storable tares;
• Bar graph display in relation to flow rate;
• 6 configurable serial communication protocols, sending the string continuously, at stability, on demand or at the press of a key;
• 5 selectable weighing filters;
• Zero tracking.

WEIGHING MODES

• Weighing in grams;
• Percentage weighing for formulation and recipe dosing;
• Customized coefficient for liquid weighing and grammage.

MAIN CERTIFICATIONS

• II 1G Ex ia II B T4 Ga
• OIML R76

  Manuals, safety instructions and ATEX EU declaration of conformity in English language.

CAPACITIES (kg): 30, 60, 200.

MAIN FEATURES

• 27-key numeric and functional waterproof keyboard.
• 9-digit 25 mm LCD display.
• IP65 stainless steel structure.
• Dimensions:
  – GEX-FZ30K-1G, 310 x 444 x 672 mm;
  – GEX-FZ60K-1G e GEX-FZ200K-1G, 380 x 653 x 804 mm;
• Weighing sensor with tuning fork technology.
• Stainless steel plate, dimensions:
  – GEX-FZ30K-1G, 310 x 330 mm;
  – GEX-FZ60K-1G e GEX-FZ200K-1G, 380 x 530 mm;
• 100 – 240VAC power supply in safe area, with RS232 serial port.
• 5 m cable between power supply and weight indicator.
• 10 m cable between platform and weight indicator.
• 2.5 m power cable.
• Operating temperature +5°C…+40°C (display and platform, 0°C…+40°C (power supply), non-condensing relative humidity 85%.
• Version approved for CE-M II legal-for-trade use.

AVAILABLE FUNCTIONS

• Zeroing;
• Semiautomatic tare;
• Preset tare;
• Tolerance check;
• Totalization in loading and unloading;
• Up to 100 storable tares;
• Bar graph display in relation to flow rate;
• 6 configurable serial communication protocols, sending the string continuously, at stability, on demand or at the press of a key;
• 5 selectable weighing filters;
• Zero tracking.

WEIGHING MODES

• Weighing in grams;
• Percentage weighing for formulation and recipe dosing;
• Customized coefficient for liquid weighing and grammage.

MAIN CERTIFICATIONS

• II 1G Ex ia II B T4 Ga
• OIML R76

  Manuals, safety instructions and ATEX EU declaration of conformity in English language.

DIVISION (g): from 0.02 to 0.1.
CAPACITY (g): 1500, 3000, 6000.

TECHNICAL FEATURES

• Backlit LCD display with 7 digits 16mm high.
• Waterproof membrane keypad, with acoustic feedback, with 7 keys.
• Stainless steel plate, size: 140x150mm.
• Level and adjustable feet.
• Built-in rechargeable battery (about 30h battery life) and 230 Vac mains power adapter.
• Operating temperature +5°C…+40°C.
• RS232/c port for connection to PC or printer.
• Packaging: 370x240x250mm size – approximate weight of 2,7kg.
• Upon request:
  – ACCREDIA calibration with issuing of relative certificate
  – CE-M approval in class III.

FUNCTIONS

• counting;
• % weight;
• weight totalisation;
• conversion up to 13 units of measure;
• zeroing;
• zero tracking;
• semi-automatic tare;
• digital calibration;
• backlight command;
• low battery warning.

COUNTING FEATURES

Internal sensitivity and minimum recommended A.P.W.:

DIVISION (g): from 0.002 to 0.01. CAPACITY (g): 150, 300, 600.

TECHNICAL FEATURES

• Backlit LCD display with 7 digits 16mm high.
• Waterproof membrane keypad, with acoustic feedback, with 7 keys.
• Stainless steel plate, size:
  – HLD150 model Ø 80mm
  – HLD300 and HLD600 models Ø 120mm.
• Windscreen, level bubble and adjustable feet.
• Built-in rechargeable battery (about 30h battery life) and 230 Vac power adapter.
• Operating temperature +5°C…+40°C.
• RS232/c port for connection to PC or printer.
• Packaging: 370x240x250mm size – approximate weight of 2,7kg.
• Upon request:
  – ACCREDIA calibration with issuing of relative certificate
  – CE-M approval in class III.

FUNCTIONS

• counting;
• % weight;
• weight totalisation;
• conversion up to 13 units of measure;
• zeroing;
• zero tracking;
• semi-automatic tare;
• digital calibration;
• backlight command;
• low battery warning.

COUNTING FEATURES

Internal sensitivity and minimum recommended A.P.W.:

High resolution IP65 stainless steel balances for industrial and laboratory use. Particularly suitable where there are strict hygiene requirements. The dual range models have a higher accuracy on the lower part of the range. CE-M APPROVED also available.

DIVISION (g): from 0.1 to 1. CAPACITY (g): from 2000 to 12000.

MAIN FEATURES

• LED display: 7 bright red segments with 7 digits, 15 mm high, for viewing the weight and 6 LEDs for showing the active functions.
• Waterproof keypad with 8 functional keys.
• Stainless steel structure.
• Stainless steel plate, 190x220mm size.
• Functions with aluminium “single point” load cell, with anticorrosive treatments.
• Protection from dust and water splashes according to IP65 standards.
• Adjustable feet and level.
• Digital calibration & set-up configurable from keyboard.
• 12 Vdc power supply with an external 230 Vac power adapter.

SELECTABLE FUNCTIONS:

• Counting
• Totalisation / Formulation with management of 3 zeroable and printable totals independent from each other (partial total, general total, grand total).
• +/- Tolerance check
• Percentage Weigh
• Programmable Set point available for all the functioning modes.

KEYPAD FUNCTIONS:

• Zero, Tare, Print, Mode, On-Off/Clear and 3 navigation keys

I/O SECTION:

• RS232/C or TTL bidirectional output for connection to printer or remote display.
• Bi-directional RS232/C or RS485 configurable output for PC, PLC and additional remote display.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

• Internal rechargeable battery
• I/O expansion with 2 inputs and 2 relay outputs (upon price estimate)
• Time/Date or Alibi memory with Time/Date

Bench scales with compact dimensions, extremely sturdy, constructed with high quality materials. Suitable for industrial laboratories and burdensome working environment. Fitted with standard weight and rapid calibration adjustment function. Multifuncional weighing programme. CE-M approvable according to EN45501.

BENCH SCALES: MAIN FEATURES

• Special body in anodised alloy, resistant and easy to clean.
• Loading surface in anodised alloy, washable and inspectionable.
• Safety limit switch and protection plate against side strikes.
• Aluminium load cell, IP67.
• Extractable calibration weight, useful for calibration control.
• Integrated weight indicator, with backlit LCD display of 25mm, waterproof keypad and multifunctional programme.
• Non-slip adjustable feet.
• Integrated level.
• IP67 protection degree.
• Serial port RS232 for connection to Pc or printer.
• Power supply through built-in rechargeable battery. Fitted with external battery charger with IP68 connector(to not use as power adaptor).
• Dimensions and weight:
  – Scale: (lxwxh) 360x210x75mm – 5,3kg.
  – Packaging: (lxwxh) 500x300x150mm – 6,6kg.
• Patented product.

BENCH SCALES: FUNCTIONING MODES

• Through the specific key, the desired functioning mode can be chosen:
• SELECTABLE FUNCTIONS:
  – x 10 high resolution visualisation.
  – Precision weighing with recalibration through standard weight (for the company internal use).
  – Switch Net/Gross
  – lb to kg or free factor conversion.
  – Weight totalisation.
  – Formulation.
  – +/- check.
  – Percentage weigh.
  – Approved weight transmission to PC/PLC or printer.
  – Pieces counting.
  – Hold
• OTHER STANDARD FUNCTIONS:
  Zeroing, Tare, preset Tare, automatic Tare, Auto switch off.

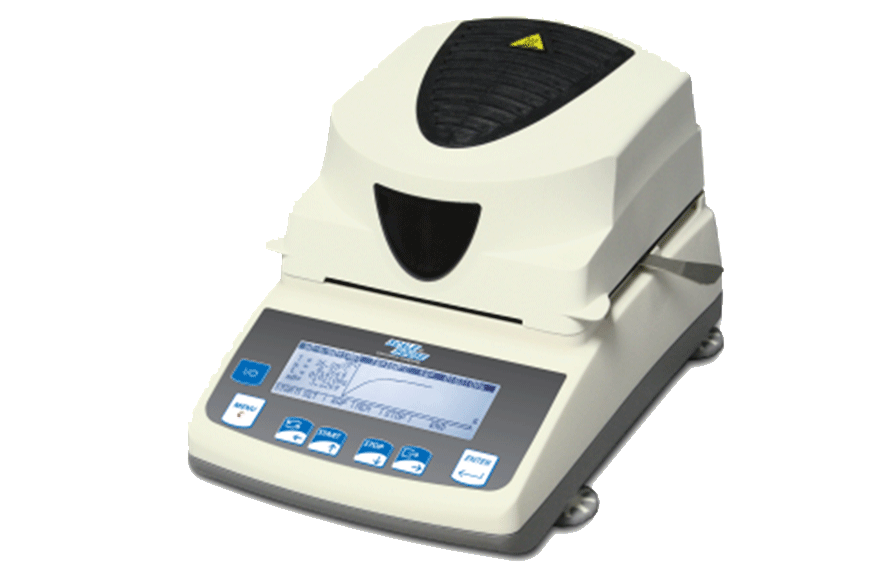

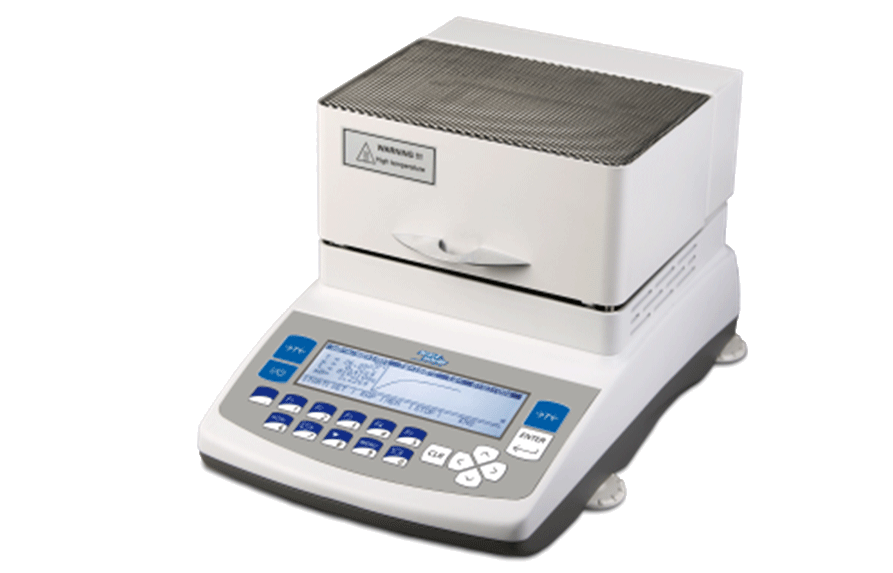

Electronic moisture analyser with very high resolution.

DIVISION (g): 0.001. CAPACITY (g): 210.

TECHNICAL FEATURES

• Graphic LCD display and waterproof membrane keypad.
• Selection of the programme language in the set-up.
• 2 halogen 200 W lamps.
• 10 sample plates.
• Resolution of humidity: 0,01%.
• Operating temperature +18°C…+33°C, non-condensing relative humidity 85%.
• Drying temperature: up to 160°C.
• Heating time (100°C): approximate time of 1 min.
• Drying time: up to 10h.
• Power supply: 230 Vac power adapter.
• PS2 input for connecting external PC keyboard.
• RS232/c port for connection to PC or printer.
• Upon request:
  – set of sample plates;
  – ACCREDIA calibration with issuing of the relative certificate.

FUNCTIONS

• Drying modes: end when reaching the established time, automatic end.
• Calculation methods: % of dry weight, % of humidity in relation to initial weight or to dry weight.
• Memory for up to 10 customized programs (mode, temperature, time, calculation method).
• Calculation and printing of the statistical evaluations.
• Displays the drying graphs.
• Entering free texts and computing the report through external PC keyboard.
• Date and time.
• Digital calibration.
• Semi-automatic tare.
